Articulated Robot Arm

July 08, 2024 Post a Comment

Articulated robot arm

An articulated robot is a robot with rotary joints (e.g. a legged robot or an industrial robot). Articulated robots can range from simple two-jointed structures to systems with 10 or more interacting joints and materials. They are powered by a variety of means, including electric motors.

How does an articulated arm work?

The pitch or bend motion is up and down much like opening and closing a box lid yaw moves left and

What are jointed arm robots used for?

These applications include arc welding, material handling, assembly, part transfer, pick and place, packaging, machine loading, and palletizing along with many others. In fact, many articulated robots such as the FANUC R-2000ib/125L are designed to perform multiple applications.

What are the 4 types of robotic arm designs?

Types of robotic arms

Articulated arm.
Six-axis.
Collaborative robot.
SCARA.
Cartesian.
Cylindrical.
Spherical/Polar.
Parallel/Delta.

How do articulated robots move?

An articulated robot has rotary joints and can have up to 10 or more axes. This gives them more freedom of movement which brings with it great versatility. Their precision and style of movement closely mimic that of a human arm.

What is the difference between Scara and articulated robots?

SCARA robots hold an advantage over articulated robots when it comes to speed. They are some of the fastest industrial robots. Since SCARA robots are smaller and have fewer axes than articulated robots, they are able to operate at greater speeds.

Who invented the articulated robot?

In 1973, German manufacturer KUKA built their first robot called FAMULUS. FAMULUS was one of the first articulated robots with 6 electromechanically driven axes. A year later in 1974 the Silver Arm was developed at MIT for small parts assembly by Victor Scheinman.

How many joints do articulated robots have?

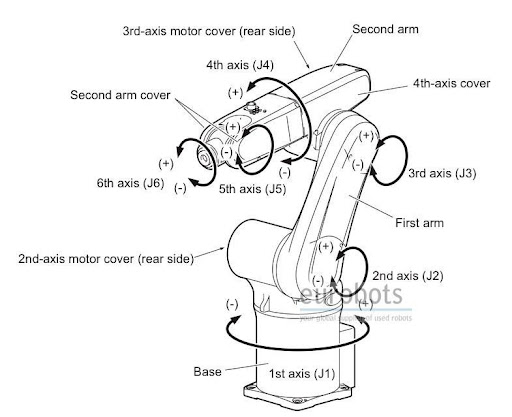

Robot and human motion comparison A vertical articulated robot is an industrial robot with a serial link structure. It is generally composed of six joints (6 axes).

How many degrees of freedom does an articulated robot have?

The vast majority of articulated robots, however, feature six axes, also called six degrees of freedom. Six axis robots allow for greater flexibility and can perform a wider variety of applications than robots with fewer axes.

What are the 3 main joints in a robotic arm?

The design objectives tree The robotic arm consists of three joints; the waist joint represented by rotation of the rotary table, the shoulder joint represented by the rotation of Link (1) and the elbow joint represented by Link (2)'s rotation.

What are the 3 main parts of a robotic arm?

These parts are:

Joints and Actuators. The robot's joints are the “bits that move.” There are various types of robot joints, including rotational joints, linear joints, orthogonal joints, and revolving joints.
Links. ...
Internal Sensors. ...
Power Source. ...
Digital I/O and Controller.

What are 5 different types of robots?

The six most common types of robots are autonomous mobile robots (AMRs), automated guided vehicles (AGVs), articulated robots, humanoids, cobots, and hybrids.

What is the strongest robotic arm?

The strongest industrial robot arm is the M-2000iA/2300 Super Heavy Payload Robot made by the Fanuc Corporation (JPN). It is a six-axis robotic arm which can pick up and move objects weighing as much as 2,300 kg (5,070 lb).

What is the most advanced robotic arm in the world?

The LUKE arm, by Mobius Bionics, is the most advanced prosthesis on the market and the only commercially-available prosthesis with a powered shoulder (up to 10 powered joints), allowing a shoulder-level amputee to reach over their head.

What are the 6 types of robots?

The six most common types of robots are autonomous mobile robots (AMRs), automated guided vehicles (AGVs), articulated robots, humanoids, cobots, and hybrids.

Can you get a robotic arm?

The introduction of "mind-controlled" robotic prosthetics will allow patients with amputations, traumatic injuries, or who were born without a limb to utilize a complete and full range of motion. What's most impressive is that the prosthetics will allow them to do this in a way that feels "natural."

What are robotic arms made of?

The industrial robotic arm, which is usually made of steel or cast iron is built from the base up, ending with the wrist and whatever end effector is needed to perform the arm's chosen task. A robotic controller rotates motors that are attached to each joint.

What sensors do articulated robots have?

The most commonly used sensors for industrial robots include two-dimensional visual sensors, three-dimensional visual sensors, force/torque sensors, and collision detection sensors.

Is SCARA an articulated robot?

What is a SCARA Robot? The SCARA acronym stands for Selective Compliance Assembly Robot Arm or Selective Compliance Articulated Robot Arm. Scara is a type of Industrial robot. The SCARA robot is most commonly used for pick-and-place or assembly operations where high speed and high accuracy is required.

Where are articulated robots used?

Articulated robots are widely used in the U.S. manufacturing industries for various applications such as welding, assembling, sealing, material handling, picking, cutting, painting, and spraying.
